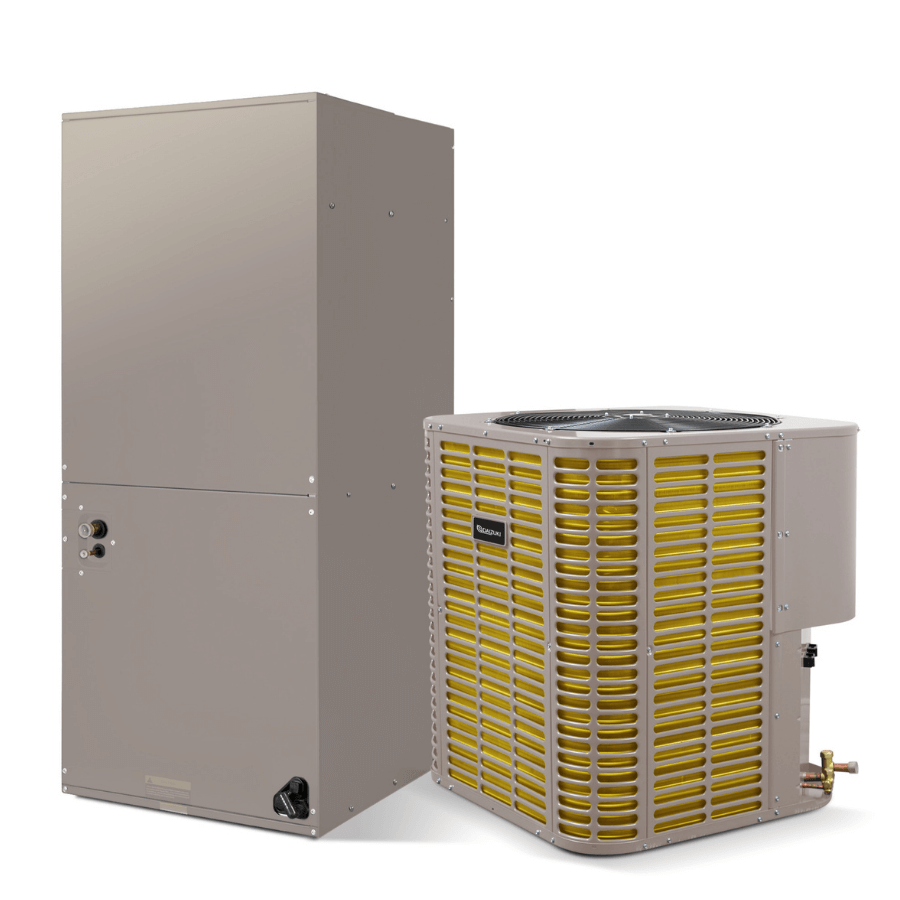

CAC1813H14 | AHC18H14
Central Split System
This On-Off Central Split System has 17,600 BTU in cooling and heating capacity and 14 SEER in efficiency. It works with a power supply source of 208~230V/1Ph/60Hz and R410A refrigerant. AHRI and ETL Certified for quality assurance.
Features
Indoor Unit Features:
Insulated Cabinet – Galvanized steel with paint on all panels. Thermal insulator cover all inside panels to reduce heat and cooling losses and prevent condensed water accumulation
Coil – “A” shape coils, constructed with copper tubing and enhanced aluminum fins
Motor & Blower – Brushless Inverter DC motor with high energy efficiency and low noise. Motor is covered with thermal insulator, keep motor running in safety status
Expansion Devise – Use TXV as expansion device
Filter Optional – Detachable air filter for cleaning or renewal
Multi-position Installation – Versatile 4-way convertible design for vertical up airflow, horizontal right airflow
Functions: Auto Re-Start, Timer, Dehumidifier
Outdoor Unit Features:
Pre Charged with R410a environmentally friendly refrigerant
24-36 KBTU use AC motor, 48-60 KBTU use DC Inverter motor
24V low voltage control
World famous compressor with quick reactivity, stronger and stable operation
Intelligent defrost programs – unit will choose different defrost program according to real condition
Gold Fin: this convenient technology will allow your equipment to have a longer functional life where traditional coil coatings fail; especially in high humidity and salinity environments that promote corrosion
Painted galvanized steel cabinet
Condenser coils constructed with copper tubing and enhanced aluminum fins
Refrigerant cooling PCB – The refrigerant pipeline cooling is used to cool the electronic control board. Make the circuit temperature more stable and the operation life longer
Use EXV as expansion device for outdoor unit in heating mode
AHRI Certified and ETL Listed for quality assurance
Winter Proof. The condensing unit’s heating operation can function at full capacity in outdoor temperatures as low as 19°F/-7°C, and could operate at half capacity in outdoor temperatures as low as -13°F/-25°C
For better performance, we recommend installing this air handler with its matching top-discharge condensing unit:
